SVG036R8NL5 30V N-CHANNEL MOSFET

SVG036R8NL5 is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan's LVMOS technology. The improved process and cell structure have been especially tailored to minimize on-state resistance, provide superior switching performance and high avalanche breakdown .

SVG036R8NL5 Features

* 24A, 30V, RDS(on)(typ.)=5.6m@VGS=10V

* Low gate charge

* Low Crss

* Fast switching

* Extreme dv/dt rated

* 100% avalanche tested

* Pb-free lead plating

* RoHS compliant S1 S2 S3 G4 8D 7D 6D 5D 8 7 6 5 65 87 4 23 1 1 32 4 PDFN-8-5X6X0.95-1.27 KEY PERFORMANCE

SVG036R8NL5-SilanMicroelectronics.pdf

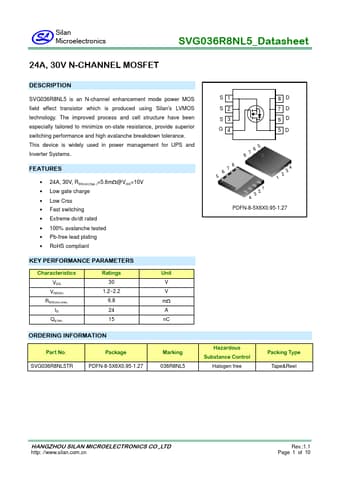

Preview of SVG036R8NL5 PDF
SVG036R8NL5 Datasheet Preview Page 2 SVG036R8NL5 Datasheet Preview Page 3

Datasheet Details

Part number:

SVG036R8NL5

Manufacturer:

Silan Microelectronics

File Size:

356.81 KB

Description:

30v n-channel mosfet.
