SVG063R5NL5

60V N-CHANNEL MOSFET

SVG063R5NL5 Features

* 130A, 60V, RDS(on)(typ.)=3.0m@VGS=10V

* Low gate charge

* Low Crss

* Fast switching

* Extreme dv/dt rated

* 100% avalanche tested

* Pb-free lead plating

* RoHS compliant S1 S2 S3 G4 8D 7D 6D 5D 8 7 6 5 65 87 4 23 1 1 32 4 PDFN-8-5X6X0.95-1.27 KEY PERFORMANC

SVG063R5NL5 General Description

SVG063R5NL5 is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan's LVMOS technology. The improved process and cell structure have been especially tailored to minimize on-state resistance, provide superior switching performance and high avalanche breakdown .

SVG063R5NL5 Datasheet (389.54 KB)

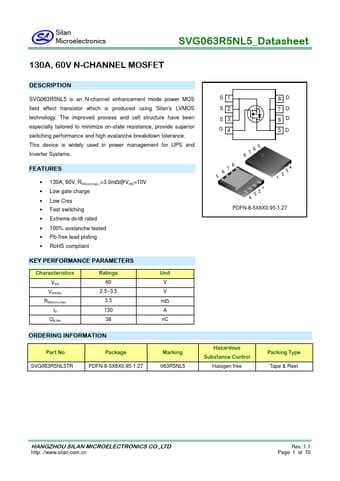

Preview of SVG063R5NL5 PDF

Datasheet Details

Part number:

SVG063R5NL5

Manufacturer:

Silan Microelectronics

File Size:

389.54 KB

Description:

60v n-channel mosfet.
