SVG10120NSA Datasheet, Mosfet, Silan Microelectronics

SVG10120NSA Features

  • Mosfet 4. Gate 1, 2, 3. Source 5, 6;7, 8. Drain 4 5678 12 3
  • 16A, 100V, RDS(on)(typ.)=10m@VGS=10V
  • Low gate charge
  • Low Crss
  • Fast switching
  • I

PDF File Details

Part number:

SVG10120NSA

Manufacturer:

Silan Microelectronics

File Size:

258.22kb

Download:

📄 Datasheet

Description:

100v n-channel mosfet. SVG10120NSA is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan's LVMOS technology. The

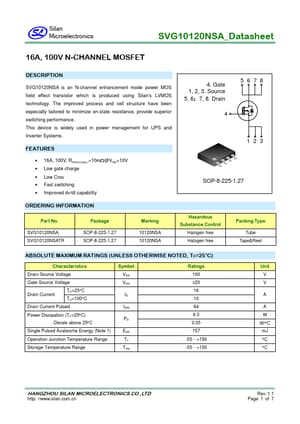

Datasheet Preview: SVG10120NSA 📥 Download PDF (258.22kb)
Page 2 of SVG10120NSA Page 3 of SVG10120NSA
