SVG104R5NT-SilanMicroelectronics.pdf
Datasheet Details
Part number:
SVG104R5NS, SVG104R5NT
Manufacturer:
Silan Microelectronics
File Size:
396.53 KB
Description:
100v n-channel mosfet.
Note:
This datasheet PDF includes multiple part numbers: SVG104R5NS, SVG104R5NT.
Please refer to the document for exact specifications by model.

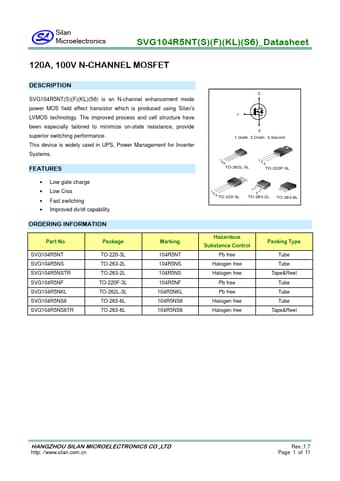

SVG104R5NS, SVG104R5NT, 100V N-CHANNEL MOSFET
SVG104R5NT(S)(F)(KL)(S6) is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan's LVMOS technology.
The improved process and cell structure have been especially tailored to minimize on-state resistance, provide superior switching performance.
This device is
SVG104R5NS Features
* 2 1 3 1.Gate 2.Drain 3.Source 123 TO-262L-3L 123 TO-220F-3L
* Low gate charge
* Low Crss
* Fast switching
* Improved dv/dt capability 123 TO-220-3L 1 3 TO-263-2L TO-263-6L ORDERING INFORMATION Part No. SVG104R5NT SVG104R5NS SVG104R5NSTR SVG104R5NF SVG104R5NKL SVG104R5NS6 SVG1
