SVGP104R5NS, SVGP104R5NT-SilanMicroelectronics Datasheet - Silan Microelectronics

SVGP104R5NT-SilanMicroelectronics_removed.pdf

This datasheet PDF includes multiple part numbers: SVGP104R5NS, SVGP104R5NT-SilanMicroelectronics. Please refer to the document for exact specifications by model.

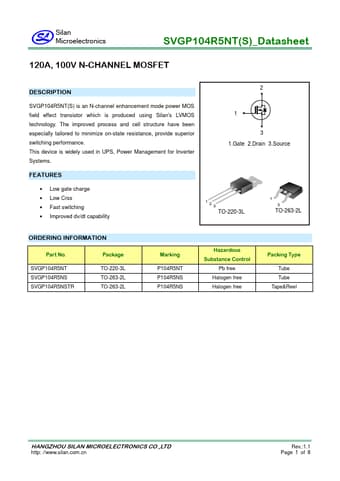

SVGP104R5NS Datasheet Preview Page 2 SVGP104R5NS Datasheet Preview Page 3

Datasheet Details

Part number:

SVGP104R5NS, SVGP104R5NT-SilanMicroelectronics

Manufacturer:

Silan Microelectronics

File Size:

271.91 KB

Description:

100v n-channel mosfet.

Note:

This datasheet PDF includes multiple part numbers: SVGP104R5NS, SVGP104R5NT-SilanMicroelectronics.
Please refer to the document for exact specifications by model.

SVGP104R5NS, SVGP104R5NT-SilanMicroelectronics, 100V N-CHANNEL MOSFET

SVGP104R5NT(S) is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan's LVMOS technology.

The improved process and cell structure have been especially tailored to minimize on-state resistance, provide superior switching performance.

This device is widely use

SVGP104R5NS Features

* Low gate charge

* Low Crss

* Fast switching

* Improved dv/dt capability 2 1 3 1.Gate 2.Drain 3.Source 123 TO-220-3L 1 3 TO-263-2L ORDERING INFORMATION Part No. SVGP104R5NT SVGP104R5NS SVGP104R5NSTR Package TO-220-3L TO-263-2L TO-263-2L Marking P104R5NT P104R5NS P104R5NS Haz
