SVGP15140NL5A 150V N-CHANNEL MOSFET

SVGP15140NL5A is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan's LVMOS technology. The improved process and cell structure have been especially tailored to minimize on-state resistance, provide superior switching performance. This device is widely used.

SVGP15140NL5A Features

* 100A, 150V, RDS(on)(typ.)=12.5m@VGS=10V

* Low gate charge

* Low Crss

* Fast switching

* Extreme dv/dt rated

* 100% avalanche tested

* Pb-free lead plating

* RoHS compliant S1 S2 S3 G4 8D 7D 6D 5D 5 678 8765 4 3 21 1 2 34 DFN-8-5×6×0.9-1.27 KEY PERFORMANCE PA

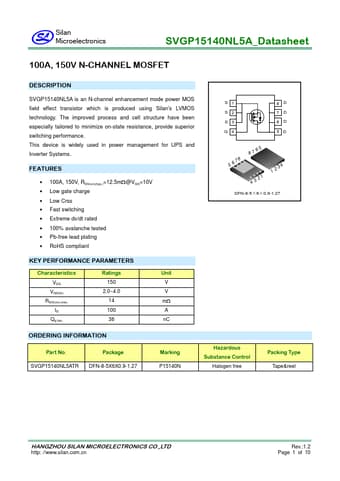

SVGP15140NL5A-SilanMicroelectronics_removed.pdf

SVGP15140NL5A Datasheet Preview — This datasheet PDF includes multiple part numbers: SVGP15140NL5A, SVGP15140NL5A-SilanMicroelectronics. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SVGP15140NL5A, SVGP15140NL5A-SilanMicroelectronics

Manufacturer:

Silan Microelectronics

File Size:

374.22 KB

Description:

150v n-channel mosfet.

Note:

This datasheet PDF includes multiple part numbers: SVGP15140NL5A, SVGP15140NL5A-SilanMicroelectronics.
Please refer to the document for exact specifications by model.
