SVGP159R3NL5A Datasheet - Silan Microelectronics

150V N-CHANNEL MOSFET

SVGP159R3NL5A Features

* 87A, 150V, RDS(on)(typ.)=7.9m@VGS=10V

* Low gate charge

* Low Crss

* Fast switching

* Extreme dv/dt rated

* 100% avalanche tested

* Pb-free lead plating

* RoHS compliant PDFN-8-5X6X0.95-1.27 DFN-8-5×6×0.9-1.27 KEY PERFORMANCE PARAMETERS Characteristics VDS VGS(t

SVGP159R3NL5A General Description

S1 SVGP159R3NL5A(L5) is an N-channel enhancement mode power S2 MOS field effect transistor which is produced using Silan's LVMOS S3 technology. The improved process and cell structure have been G4 especially tailored to minimize on-state resistance, provide superior switching performance. .

SVGP159R3NL5A Datasheet (427.38 KB)

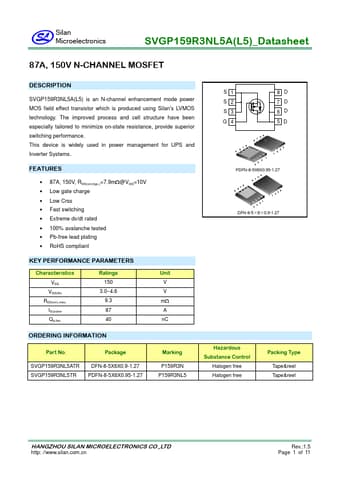

SVGP159R3NL5A Datasheet Preview — Preview of SVGP159R3NL5A PDF

Datasheet Details

Part number:

SVGP159R3NL5A

Manufacturer:

Silan Microelectronics

File Size:

427.38 KB

Description:

150v n-channel mosfet.
