SD42522 - 1A High Power LED Driver

SD42522 Description

1A High Power LED Driver with 6～36V Input .
The SD42522 is a step-down PWM control LED driver with a built-in power MOSFET.

SD42522 Features

* 6-36V input voltage range
* Maximum 1A output current
* 0.40Ω built-in power MOSFET
* Integrate Jitter function
* 280kHz fixed frequency
* Excellent constant current accuracy ±1%
* High efficiency up to 96%
* Thermal shutdown
* Cycle-by-cycle over current protec

SD42522 Applications

* MR16 LED spotlight
* LED illuminance
* LED street lamp ORDERING INFORMATION www. DataSheet4U. com Part No. Package SOP-8-225-1.27 SOP-8-225-1.27 Marking SD42522 SD42522 Material Pb free Pb free Package Type Tube Tape & Reel SD42522 SD42522TR HANGZHOU SILAN MICROELECTRONICS CO. ,L

📥 Download Datasheet

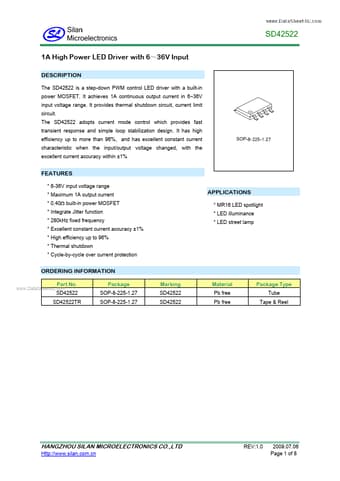

Preview of SD42522 PDF
