SD42525KTR HIGH-EFFICIENCY HYSTERESIS LED DRIVER

SD42525 is a step-down constant current converter with inductance current continuous-conduction mode, it is used for driving LED or LEDs in series. The output current is adjustable which is up to 1A in 6~32V input voltage range. LED whose power is tens of watts can be driven by SD42525 with dif.

SD42525KTR Features

* LED backup lamp

* LED signal lamp

* Few peripheral elements

* Built-in 36V power MOSFET

* Wide input voltage range: 6V~32V

* Maximum 1A output current

* Excellent output current accuracy: ±3%

* Multiplex pin DIM is used for chip switch, analog dimming and PWM dimm

SD42525-SilanMicroelectronics.pdf

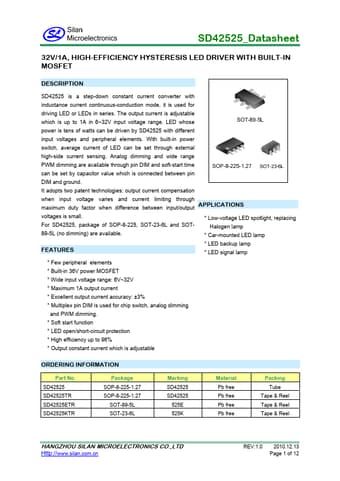

SD42525KTR Datasheet Preview — This datasheet PDF includes multiple part numbers: SD42525KTR, SD42525. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SD42525KTR, SD42525

Manufacturer:

Silan Microelectronics

File Size:

833.03 KB

Description:

High-efficiency hysteresis led driver.

Note:

This datasheet PDF includes multiple part numbers: SD42525KTR, SD42525.
Please refer to the document for exact specifications by model.
