BUCK LED DRIVER

SD42530 Features

* 8-80V input voltage range;

* External MOSFET;

* Linear dimming and PWM dimming;

* 350kHz fixed frequency;

* Closed-loop regulation, with high output current accuracy;

* Over temperature protection;

* Frequency jitter;

* Output short circuit protection;

* Cycle-

SD42530 General Description

The SD42530 is a buck LED driver with external power MOSFET, it can be used to drive one or more LEDs in series in BUCK mode. Its input voltage ranges from 8V to 80V, the output current is adjustable with good constant current accuracy. It provides built-in temperature protection, current limit pro.

SD42530 Datasheet (95.78 KB)

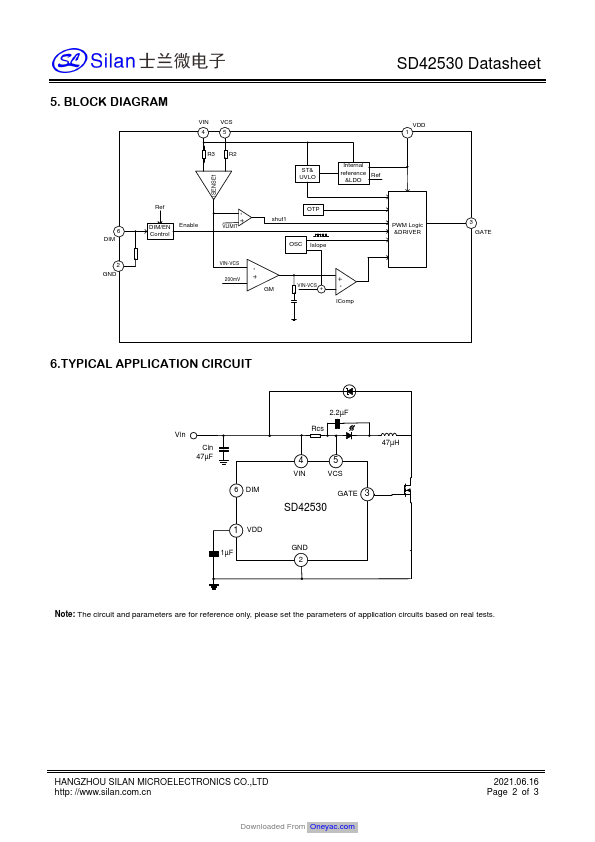

SD42530 Datasheet Preview — Preview of SD42530 PDF

Datasheet Details

Part number:

SD42530

Manufacturer:

Silan Microelectronics

File Size:

95.78 KB

Description:

Buck led driver.
