SD42524 - 1A High Power LED Driver

SD42524 Description

www.DataSheet4U.com SD42524 1A High Power LED Driver with 6～36V Input .
The SD42524 is a step-down PWM control LED driver with a built-in power MOSFET.

SD42524 Features

* 6-36V input voltage range
* Maximum 1A output current
* 0.40Ω built-in power MOSFET
* Integrate Jitter function
* Thermal compensation
* PWM dimming function
* 280kHz fixed frequency
* Excellent constant current accuracy ±1%
* High efficiency up to 96%
* The

SD42524 Applications

* MR16 LED spotlight
* LED illuminance
* LED street lamp ORDERING INFORMATION Part No. SD42524 Package SOP-8-225-1.27 Marking SD42524 HANGZHOU SILAN MICROELECTRONICS CO. ,LTD Http://www. silan. com. cn REV:1.1 2009.06.26 Page 1 of 11 www. DataSheet4U. com SD42524 BLOCK DIAGRAM ABSOLUTE

📥 Download Datasheet

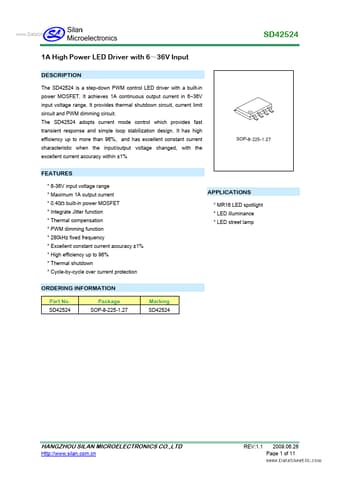

Preview of SD42524 PDF
