SD42560E Datasheet, Driver, Silan Microelectronics

SD42560E Features

  • Driver
  • 5~36V input voltage range
  • Maximum 1A output current (Buck mode)
  • 0.3Ω built-in power MOSFET
  • PWM dimming function
  • 280kHz fixed frequency

PDF File Details

Part number:

SD42560E

Manufacturer:

Silan Microelectronics

File Size:

701.06kb

Download:

📄 Datasheet

Description:

Buck/boost/buck-boost led driver. The SD42560 is PWM control LED driver in Buck/Boost/Buck-Boost modes with thermal shutdown circuit, current limit circuit and PWM dim

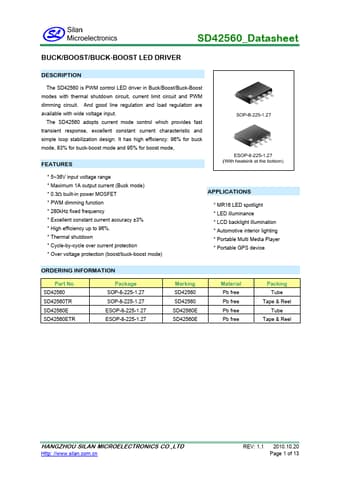

Datasheet Preview: SD42560E 📥 Download PDF (701.06kb)
Page 2 of SD42560E Page 3 of SD42560E

SD42560E Application

  • Applications
  • MR16 LED spotlight
  • LED illuminance
  • LCD backlight illumination
  • Automotive interior lighting
