SD42560TR BUCK/BOOST/BUCK-BOOST LED DRIVER

The SD42560 is PWM control LED driver in Buck/Boost/Buck-Boost modes with thermal shutdown circuit, current limit circuit and PWM dimming circuit. And good line regulation and load regulation are available with wide voltage input. The SD42560 adopts current mode control which provides fast transient.

SD42560TR Features

* 5~36V input voltage range

* Maximum 1A output current (Buck mode)

* 0.3Ω built-in power MOSFET

* PWM dimming function

* 280kHz fixed frequency

* Excellent constant current accuracy ±3%

* High efficiency up to 96%.

* Thermal shutdown

* Cycle-by-cycle over current

SD42560-SilanMicroelectronics.pdf

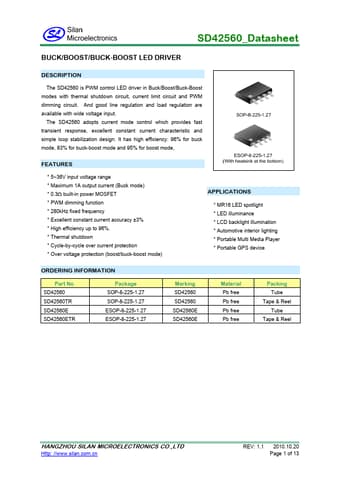

SD42560TR Datasheet Preview — This datasheet PDF includes multiple part numbers: SD42560TR, SD42560. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SD42560TR, SD42560

Manufacturer:

Silan Microelectronics

File Size:

701.06 KB

Description:

Buck/boost/buck-boost led driver.

Note:

This datasheet PDF includes multiple part numbers: SD42560TR, SD42560.
Please refer to the document for exact specifications by model.
