SD42560 Datasheet, Driver, Silan Microelectronics

✔ SD42560 Features

5~36V input voltage range
Maximum 1A output current (Buck mode)
0.3Ω built-in power MOSFET
PWM dimming function
280kHz fixed frequency
Excellent constant curr

✔ SD42560 Application

MR16 LED spotlight
LED illuminance
LCD backlight illumination
Automotive interior lighting
Portabl

PDF File Details

Silan Microelectronics manufacturer logo

Part number:

SD42560

Manufacturer:

Silan Microelectronics

File Size:

701.06kb

Download:

📄 Datasheet

Description:

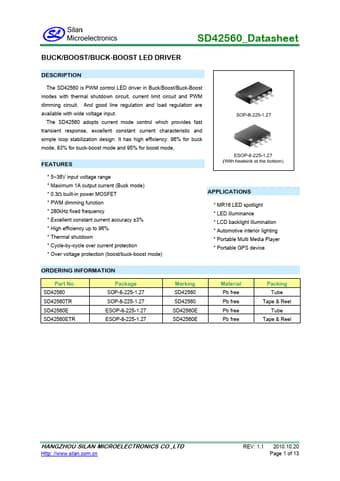

Buck/boost/buck-boost led driver. The SD42560 is PWM control LED driver in Buck/Boost/Buck-Boost modes with thermal shutdown circuit, current limit circuit and PWM dim
