SY8366H Datasheet, Regulator, Silergy

SY8366H Features

  • Regulator
  • Low RDS(ON) for internal switches (top/bottom): 40/20 mΩ
  • Wide input voltage range: 4-28V
  • Instant PWM architecture to achieve fast transient responses

PDF File Details

Part number:

SY8366H

Manufacturer:

Silergy

File Size:

1.54MB

Download:

📄 Datasheet

Description:

Synchronous step down regulator. The SY8366H develops a high efficiency synchronous step-down DC-DC regulator capable of delivering 6A continuous, 12A peak current.

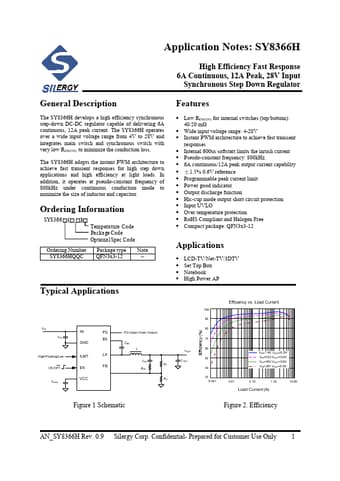

Datasheet Preview: SY8366H 📥 Download PDF (1.54MB)
Page 2 of SY8366H Page 3 of SY8366H

SY8366H Application

  • Applications and high efficiency at light loads. In addition, it operates at pseudo-constant frequency of 800kHz under continuous conduction mode to
