SY8301 Synchronous Step Down Regulator

Silergy

Description

Application Note: SY8301 High Efficiency, 1A 40V Input Synchronous Step Down Regulator General .
The SY8301 develops a high efficiency synchronous step-down DC/DC converter capable of delivering 1A load current.

📥 Download Datasheet

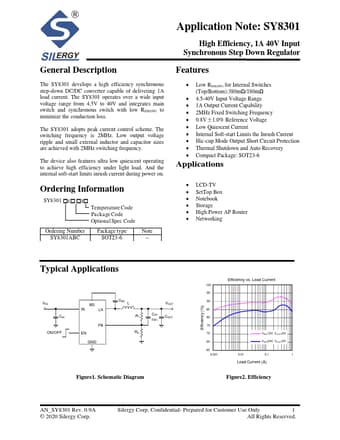

SY8301 Datasheet Preview — Preview of SY8301 PDF

Datasheet Specifications

Part number: SY8301
Manufacturer: Silergy
File Size: 845.92 KB
Datasheet: SY8301-Silergy.pdf
Description: Synchronous Step Down Regulator

Features

* ultra low quiescent operating to achieve high efficiency under light load. And the internal soft-start limits inrush current during power on. Ordering Information SY8301
* (
* )
* Tempera ture Code Pa cka ge Code Optional Spec Code Ordering Number Package type Note

Applications

* LCD-TV
* SetTop Box
* Notebook
* Storage
* High Power AP Router
* Networking Typical Applications VIN CIN ON/OFF BS IN LX FB EN GND CBS L R1 R2 VOUT CFF (Opt. ) COUT Figure1. Schematic Diagram Efficiency (%) 100 95 90 85 80 75 70 65 60 0.
