SY8368

Synchronous Step Down Regulator

SY8368 Features

* Low RDS(ON) for internal switches (top/bottom): 20/10 mΩ

* Wide input voltage range: 4-28V

* Instant PWM architecture to achieve fast transient responses

* Internal 400uS softstart limits the inrush current

* Pseudo-constant frequency: 800kHz.

* 8A c

SY8368 General Description

The SY8368 develops a high efficiency synchronous step-down DC-DC regulator capable of delivering 8A continuous, 16A peak current. The SY8368 operates over a wide input voltage range from 4V to 28V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction lo.

SY8368 Datasheet (1.36 MB)

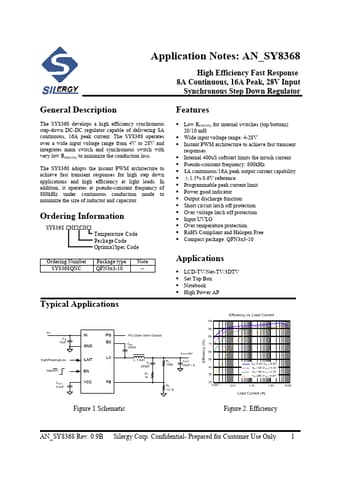

Preview of SY8368 PDF

Datasheet Details

Part number:

SY8368

Manufacturer:

Silergy

File Size:

1.36 MB

Description:

Synchronous step down regulator.
