SY8388A

Synchronous Step Down Regulator

SY8388A Features

* Low RDS(ON) for Internal Switches (Top/Bottom): 20/10 mΩ

* Wide Input Voltage Range: 4~24V

* Integrated Bypass Switch: 1.5Ω

* Instant PWM Architecture to Achieve Fast Transient Responses

* Internal Soft-Start Limits the Inrush Current

* Pseudo-Constant Frequency: 600kHz

SY8388A General Description

SY8388A develops a high efficiency synchronous stepdown DC/DC regulator capable of delivering 8A current over a wide input voltage range of 4V to 24V. Silergy’s proprietary Instant-PWM™ fast-response, constant-on-time (COT) PWM control method supports high input/output voltage ratios (low duty cycle.

SY8388A Datasheet (1.84 MB)

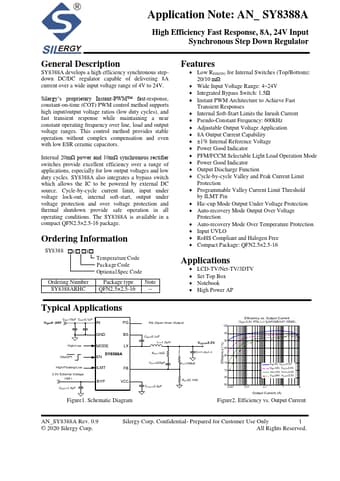

Preview of SY8388A PDF

Datasheet Details

Part number:

SY8388A

Manufacturer:

Silergy

File Size:

1.84 MB

Description:

Synchronous step down regulator.
