SY8368A

Synchronous Step Down Regulator

SY8368A Features

* 4.0-28V Wide Input Voltage Range

* Low RDS(ON) for Internal Switches: 20/10mΩ

* Instant PWM Architecture to Achieve Fast Transient Response

* Internal 600μs Soft-start Limits the Inrush Current

* Pseudo-constant Frequency: 800kHz

* 8A Continuous, 16A Peak Output Current Cap

SY8368A General Description

The SY8368A develops a high efficiency synchronous step-down DC/DC regulator capable of delivering 8A continuous, 16A peak current. The SY8368A operates over a wide input voltage range from 4.0V to 28V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conductio.

SY8368A Datasheet (465.92 KB)

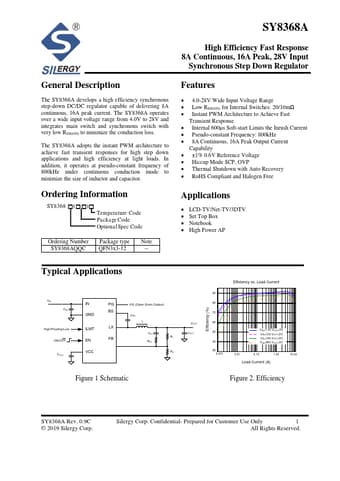

Preview of SY8368A PDF

Datasheet Details

Part number:

SY8368A

Manufacturer:

Silergy

File Size:

465.92 KB

Description:

Synchronous step down regulator.
