SCT2130

2.8V-6V Vin 3A Synchronous Step Down Convertor

SCT2130 Features

* Input Voltage Range: 2.8V-6V

* Up to 3A Continuous Output Current

* Low Shutdown Current: 0.7uA

* 0.6±1% Feedback Reference Voltage

* 2.1MHz Switching Frequency

* Integrated 25mΩ High-Side and 20mΩ Low-Side Power MOSFETs

* Adjustable output v

SCT2130 General Description

The SCT2130 is a monolithic, step-down switchmode converter with built-in internal 25mΩ High-Side and 20mΩ Low-Side Power MOSFETs. The device achieves 3A of continuous output current from a 2.8V to 6V input voltage range, with excellent load and line regulation. The output voltage can be regulated t.

SCT2130 Datasheet (969.52 KB)

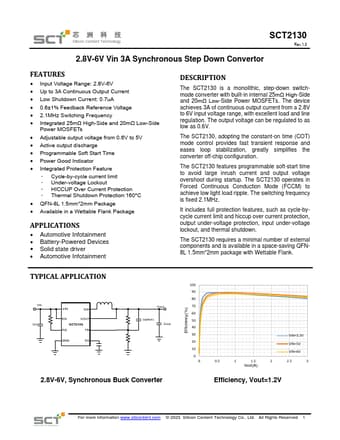

Preview of SCT2130 PDF

Datasheet Details

Part number:

SCT2130

Manufacturer:

Silicon Content

File Size:

969.52 KB

Description:

2.8v-6v vin 3a synchronous step down convertor.
