SCT2632Q Datasheet - Silicon Content

High Efficiency Step-down DCDC Converter

SCT2632Q Features

* Qualified for Automotive Applications

* AEC-Q100 Qualified with the Following Results: - Device Temperature Grade 1: -40°C to 125°C Ambient Operating Temperature Range - Device HBM ESD Classification Level H2 - Device CDM ESD Classification Level C3B

* Wide Input Range: 4.2V-60V

SCT2632Q General Description

The SCT2632Q is 3A buck converter with wide input voltage, ranging from 4.2V to 60V, which integrates an 220mΩ high-side MOSFET. The SCT2632Q, adopting the peak current mode control, supports the Pulse Skipping Modulation (PSM) which assists the converter on achieving high efficiency at light load o.

SCT2632Q Datasheet (1.75 MB)

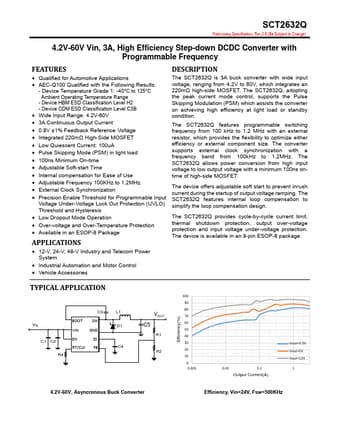

SCT2632Q Datasheet Preview — Preview of SCT2632Q PDF

Datasheet Details

Part number:

SCT2632Q

Manufacturer:

Silicon Content

File Size:

1.75 MB

Description:

High efficiency step-down dcdc converter.
SCT2632Q Preliminary Specification, Rev.0.8 (Be Subject to Change) 4.2V-60V Vin, 3A, High Efficiency Step-down DCDC Converter with Programmable Frequ.
