SCT2610 Datasheet - SCT

High Efficiency Step-down DCDC Converter

SCT2610 Features

* Wide Input Range: 3.8V-60V

* Up to 1.5A Continuous Output Current

* 0.8V ±1% Feedback Reference Voltage

* Integrated 220mΩ High-Side MOSFET

* Low Quiescent Current: 190uA

* Pulse Skipping Mode (PSM) in light load

* 100ns Minimum On-time

* Adjustable Soft-start Time

SCT2610 General Description

The SCT2610 is 1.5A buck converter with wide input voltage, ranging from 3.8V to 60V, which integrates an 220mΩ high-side MOSFET. The SCT2610, adopting the peak current mode control, supports the Pulse Skipping Modulation (PSM) which assists the converter on achieving high efficiency at light load o.

SCT2610 Datasheet (1.85 MB)

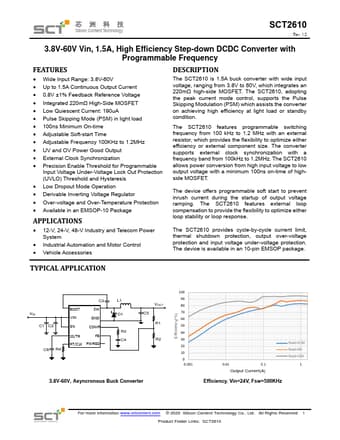

SCT2610 Datasheet Preview — Preview of SCT2610 PDF

Datasheet Details

Part number:

SCT2610

Manufacturer:

SCT

File Size:

1.85 MB

Description:

High efficiency step-down dcdc converter.
