SCT2600

High Efficiency Step-down DCDC Converter

SCT2600 Features

* Wide Input Range: 4.5V-60V

* Continuous Output Current: 0.6A

* 0.765V ±2.5% Feedback Reference Voltage

* Integrated 500mΩ High-Side

* Low Quiescent Current: 80uA

* Pulse Skipping Mode (PSM) in light load

* 80ns Minimum On-time

* 6ms Internal Soft-start Time

* In

SCT2600 General Description

The SCT2600 is 0.6A buck converter with wide input voltage, ranging from 4.5V to 60V, which integrates an 500mΩ high-side MOSFET. The SCT2600, adopting the peak current mode control, supports the Pulse Skipping Modulation (PSM) with 80uA low quiescent current which assists the converter on achieving.

SCT2600 Datasheet (1.73 MB)

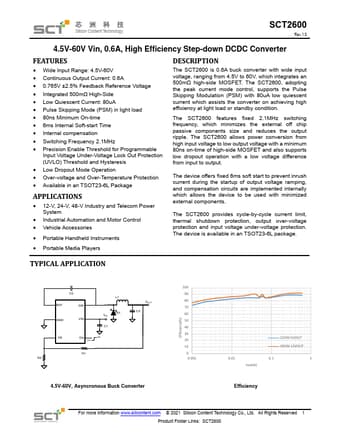

Preview of SCT2600 PDF

Datasheet Details

Part number:

SCT2600

Manufacturer:

SCT

File Size:

1.73 MB

Description:

High efficiency step-down dcdc converter.
