SCT2632 - High Efficiency Step-down DCDC Converter

Product Overview

Silicon Content

📥 Download Datasheet

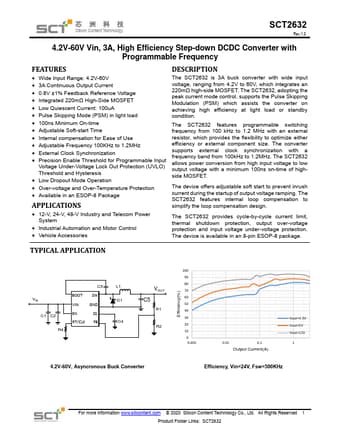

SCT2632 High Efficiency Step-down DCDC Converter by Silicon Content - Datasheet Preview — Datasheet preview – SCT2632

Datasheet Details

Part number	SCT2632
Manufacturer	Silicon Content
File Size	1.78 MB
Description	High Efficiency Step-down DCDC Converter
Datasheet	SCT2632 Datasheet
Additional preview pages of the SCT2632 datasheet.

Product details

Description

The SCT2632 is 3A buck converter with wide input voltage, ranging from 4.2V to 60V, which integrates an 220mΩ high-side MOSFET.

Features

Wide Input Range: 4.2V-60V.
3A Continuous Output Current.
0.8V ±1% Feedback Reference Voltage.
Integrated 220mΩ High-Side MOSFET.
Low Quiescent Current: 100uA.
Pulse Skipping Mode (PSM) in light load.
100ns Minimum On-time.
Adjustable Soft-start Time.
Internal compensation for Ease of Use.
Adjustable Frequency 100KHz to 1.2MHz.
External Clock Synchronization.
Precision Enable Threshold for Programmable Input Voltage Under-Voltage Lock.
