SCT2610A Datasheet - SCT

High Efficiency Step-down DCDC Converter

SCT2610A Features

* Wide Input Range: 4.5V-65V

* 0.6A Continuous Output Current

* 0.8V ±1% Feedback Reference Voltage

* Integrated 750mΩ High-Side and 500mΩ Low- Side Power MOSFETs

* Pulse Frequency Modulation (PFM) with 100uA Quiescent Current in Sleep Mode

* 4ms Inter

SCT2610A General Description

The SCT2610A is 0.6A synchronous buck converters with wide input voltage, ranging from 4.5V to 65V, which integrates an 750mΩ high-side MOSFET and a 500mΩ low-side MOSFET. The SCT2610A, adopting the constant-on time (COT) mode control, supports the PFM with typical 100uA low quiescent current which .

SCT2610A Datasheet (593.73 KB)

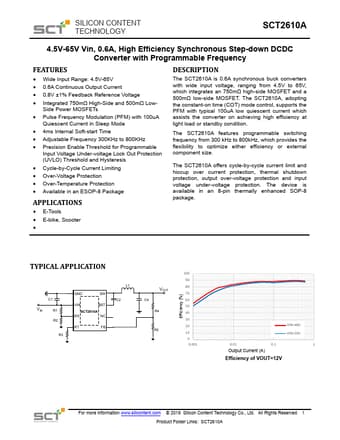

SCT2610A Datasheet Preview — Preview of SCT2610A PDF

Datasheet Details

Part number:

SCT2610A

Manufacturer:

SCT

File Size:

593.73 KB

Description:

High efficiency step-down dcdc converter.
