SCT2650 - High Efficiency Step-down DCDC Converter

Datasheet Summary

Description

The SCT2650 is 5A buck converter with wide input voltage, ranging from 4.5V to 60V, which integrates an 80mΩ high-side MOSFET.

Features

  • Wide Input Range: 4.5V-60V.
  • Up to 5A Continuous Output Current.
  • 0.8V ±1% Feedback Reference Voltage.
  • Integrated 80mΩ High-Side MOSFET.
  • Low Quiescent Current: 175uA.
  • Pulse Skipping Mode (PSM) in light load.
  • 130ns Minimum On-time.
  • 4ms Internal Soft-start Time.
  • Adjustable Frequency 100KHz to 1.2MHz.
  • External Clock Synchronization.
  • Precision Enable Threshold for Programmable Input Voltage Under-Voltage Lock Out Protection (UVLO) Threshold and H.

📥 Download Datasheet

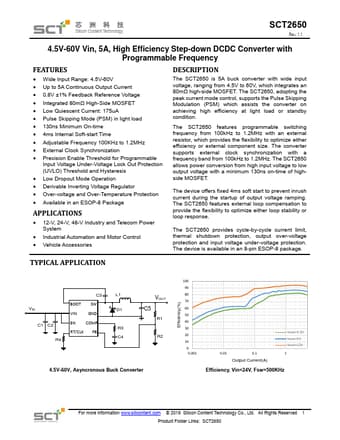

Datasheet preview – SCT2650

Datasheet Details

Part number SCT2650
Manufacturer SCT
File Size 1.85 MB
Description High Efficiency Step-down DCDC Converter
Datasheet download datasheet SCT2650 Datasheet
