SCT2632A - High Efficiency Step-down DCDC Converter

Product Overview

Silicon Content

📥 Download Datasheet

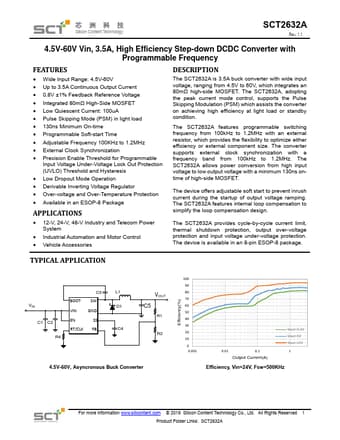

SCT2632A High Efficiency Step-down DCDC Converter by Silicon Content - Datasheet Preview — Datasheet preview – SCT2632A

Datasheet Details

Part number	SCT2632A
Manufacturer	Silicon Content
File Size	1.90 MB
Description	High Efficiency Step-down DCDC Converter
Datasheet	SCT2632A Datasheet
Additional preview pages of the SCT2632A datasheet.

Product details

Description

The SCT2632A is 3.5A buck converter with wide input voltage, ranging from 4.5V to 60V, which integrates an 80mΩ high-side MOSFET.

Features

Wide Input Range: 4.5V-60V.
Up to 3.5A Continuous Output Current.
0.8V ±1% Feedback Reference Voltage.
Integrated 80mΩ High-Side MOSFET.
Low Quiescent Current: 100uA.
Pulse Skipping Mode (PSM) in light load.
130ns Minimum On-time.
Programmable Soft-start Time.
Adjustable Frequency 100KHz to 1.2MHz.
External Clock Synchronization.
Precision Enable Threshold for Programmable Input Voltage Under-Voltage Lock Out Protection (UVLO) Threshold and.
