STPR850DF, (STPR850DF / STPR860DF) Ultra Fast Recovery Diodes

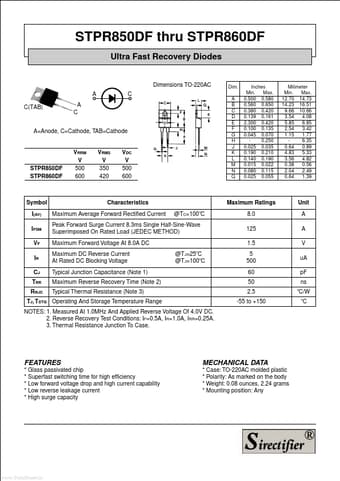

STPR850DF thru STPR860DF Ultra Fast Recovery Diodes Dimensions TO-220AC A C(TAB) A C C Dim.
A B C D E F G H J K L M N Q A=Anode, C=Cathode, TAB=Cathode STPR850DF STPR860DF VRRM V 500 600 VRMS V 350 420 VDC V 500 600 Inches Min.
Max.
0.500 0.580 0.560 0.650 0.380 0.420 0.139 0.161 2.300 0.420 0.100 0.135 0.045 0.070 0.250 0.025 0.035 0.190 0.210 0.140 0.190 0.015 0.022 0.080 0.115 0.025 0.055 Milimeter Min.
Max.
12.70 14.73 14.23 16.51 9.66 10.66 3.54 4.08 5.85 6.85 2.54 3.42 1.15 1.77 6
STPR850DF Features
* Glass passivated chip
* Superfast switching time for high efficiency
* Low forward voltage drop and high current capability
* Low reverse leakage current
* High surge capacity MECHANICAL DATA
* Case: TO-220AC molded plastic
* Polarity: As marked on the body
* Weigh
