SMPA1302-079LF

Switch and Attenuator Plastic Packaged PIN Diode

SMPA1302-079LF Features

* AEC-Q101 qualified

* ISO/TS16949 certified facility

* Designed for large signal switching applications

* Designed for low distortion attenuator applications

* Low capacitance (< 0.30 pF) for high isolation performance

* Package rated MSL1 @ 260 C per JEDEC J-STD-020 Skywor

SMPA1302-079LF General Description

The SMPA1302-079LF plastic packaged, surface mountable, low capacitance (0.3 pF) silicon PIN diode is designed for switch and attenuator applications used in vehicle infotainment. The nominal 50 μm I region width, combined with a maximum resistance of 3 Ω at 10 mA, makes these diodes useful in large.

SMPA1302-079LF Datasheet (528.66 KB)

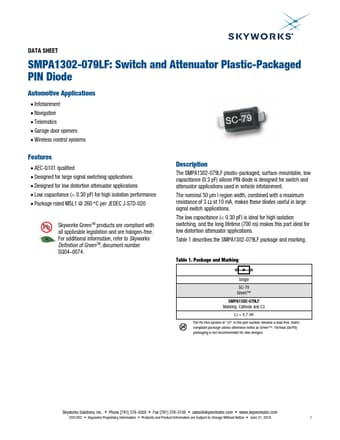

Preview of SMPA1302-079LF PDF

Datasheet Details

Part number:

SMPA1302-079LF

Manufacturer:

Skyworks Solutions

File Size:

528.66 KB

Description:

Switch and attenuator plastic packaged pin diode.
DATA SHEET SMPA1302-079LF: Switch and Attenuator Plastic Packaged PIN Diode Automotive Applications
* Infotainment
* Navigation
* Telemati.
