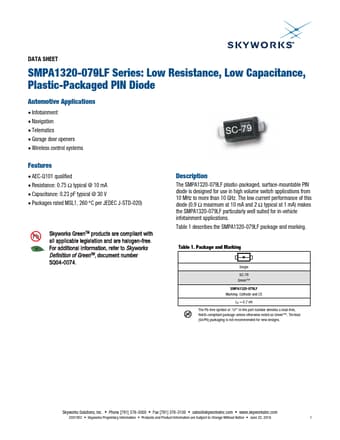

SMPA1320-079LF Datasheet, Diode, Skyworks Solutions

SMPA1320-079LF Features

• Diode
• AEC-Q101 qualified
• ISO/TS16949 certified facility
• Resistance: 0.75 Ω typical @ 10 mA
• Capacitance: 0.23 pF typical @ 30 V
• Packages rated

PDF File Details

Part number:

SMPA1320-079LF

Manufacturer:

Skyworks Solutions

File Size:

557.67kb

Download:

📄 Datasheet

Description:

Plastic packaged pin diode. The SMPA1320-079LF plastic packaged, surface mountable PIN diode is designed for use in high volume switch applications from 10 MHz t

SMPA1320-079LF Application

• Applications
• Infotainment
• Navigation
• Telematics
• Garage door openers
• Wireless control systems Feat
