SMPA38-2 Datasheet - Tyco Electronics

SMPA38-2 200 TO 2600 MHz CASCADABLE AMPLIFIER

200 TO 2600 MHz CASCADABLE AMPLIFIER WIDE BANDWIDTH: 200-2800 MHz (TYP.) HIGH OUTPUT LEVEL: +23.5 dBm (TYP.) GaAs FET AMPLIFIER HIGH THIRD ORDER I.P.: +33 dBm (TYP.) PA38-2/SMPA382 Typical Performance @ 25°C Specifications (Rev. Date: 1/01) Characteristics Frequency Small Signal Gain (min.) Gain Flatness (max.) Reverse Isolation Noise Figure (max.) Power Output @ 1 dB comp. (min.) IP3 IP2 Second Order Harmonic IP VSWR Input / Output (max.) DC Current @ 15 Volts (m.

SMPA38-2_TycoElectronics.pdf

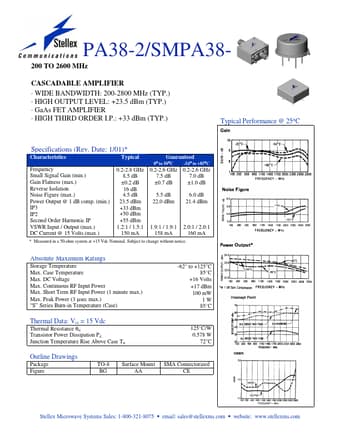

Preview of SMPA38-2 PDF

Datasheet Details

Part number:

SMPA38-2

Manufacturer:

Tyco Electronics

File Size:

104.23 KB

Description:

200 to 2600 mhz cascadable amplifier.
