SMPA1345-040LF

Silicon PIN Diode

SMPA1345-040LF Features

* AEC-Q101 qualified

* Level-3 PPAP available upon request

* IMDS material declaration available

* Very low insertion loss: 0.4 dB

* Capacitance: 0.15 pF

* Package rated MSL1, 260 C per JEDEC J-STD-020 Skyworks GreenTM products are compliant with all applicable legislation a

SMPA1345-040LF General Description

The SMPA1345-040LF plastic-packaged, surface-mountable PIN diode is designed for high-volume low-noise block (LNB), wireless local area network (WLAN), and switch applications from 10 MHz to 6 GHz. The short carrier lifetime of 100 ns (typical), combined with the thin I-region width of 10 μm (nomina.

SMPA1345-040LF Datasheet (606.49 KB)

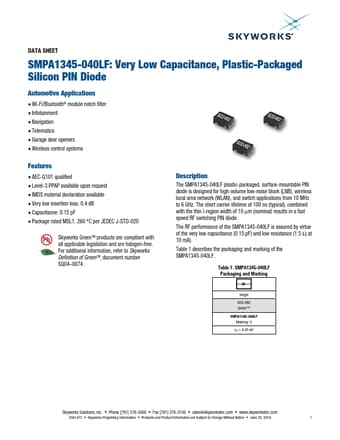

Preview of SMPA1345-040LF PDF

Datasheet Details

Part number:

SMPA1345-040LF

Manufacturer:

Skyworks

File Size:

606.49 KB

Description:

Silicon pin diode.
DATA SHEET SMPA1345-040LF: Very Low Capacitance, Plastic-Packaged Silicon PIN Diode Automotive Applications Wi-Fi/Bluetooth® module notch filter.
