SMPA2010 200 TO 2000 MHz TO-8 CASCADABLE AMPLIFIER

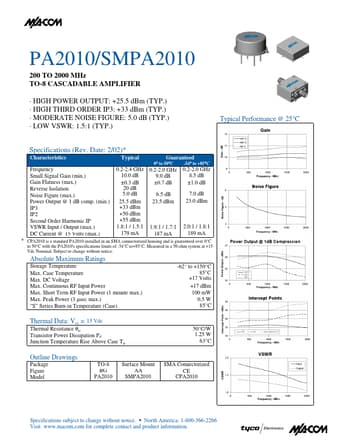

PA2010/SMPA2010 200 TO 2000 MHz TO-8 CASCADABLE AMPLIFIER HIGH POWER OUTPUT: +25.5 dBm (TYP.) HIGH THIRD ORDER IP3: +33 dBm (TYP.) MODERATE NOISE FIGURE: 5.0 dB (TYP.) LOW VSWR: 1.5:1 (TYP.) Specifications (Rev. Date: 2/02) Characteristics Frequency Small Signal Gain (min.) Gain Flatness (max.) Reverse Isolation Noise Figure (max.) Power Output @ 1 dB comp. (min.) IP3 IP2 Second Order Harmonic IP VSWR Input / Output (max.) DC Current @ 15 Volts (max.) Typical 0° to 5.

SMPA2010_TycoElectronics.pdf

SMPA2010 Datasheet Preview — Preview of SMPA2010 PDF

Datasheet Details

Part number:

SMPA2010

Manufacturer:

Tyco Electronics

File Size:

98.03 KB

Description:

200 to 2000 mhz to-8 cascadable amplifier.
