SMPA1304-011LF

PIN Diode

Skyworks

SMPA1304-011LF Features

* AEC-Q101 qualified

* Designed for low distortion attenuator applications

* Frequency range from 5 MHz to >2 GHz

* Package rated MSL1 @ 260 C per JEDEC J-STD-020 Skyworks GreenTM products are compliant with all applicable legislation and are halogen-free. For additional information

SMPA1304-011LF General Description

The SMPA1304-011LF plastic packaged, surface mountable, low capacitance (0.3 pF) silicon PIN diode is designed for attenuator applications from 5 MHz to beyond 2 GHz. The thick 100 μm I region of this PIN diode makes this device very attractive for use in low distortion attenuators in vehicle infota.

SMPA1304-011LF Datasheet (423.89 KB)

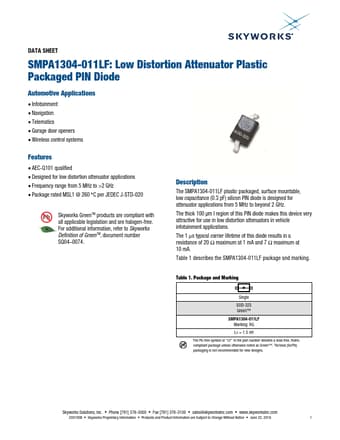

SMPA1304-011LF Datasheet Preview — Preview of SMPA1304-011LF PDF

Datasheet Details

Part number:

SMPA1304-011LF

Manufacturer:

Skyworks

File Size:

423.89 KB

Description:

Pin diode.
DATA SHEET SMPA1304-011LF: Low Distortion Attenuator Plastic Packaged PIN Diode Automotive Applications Infotainment Navigation Tele.
