CXD1910AQ - Digital Video Encoder

Sony Corporation

The CXD1910AQ by Sony Corporation is a Digital Video Encoder. Below is the official datasheet preview.

📥 Download Datasheet

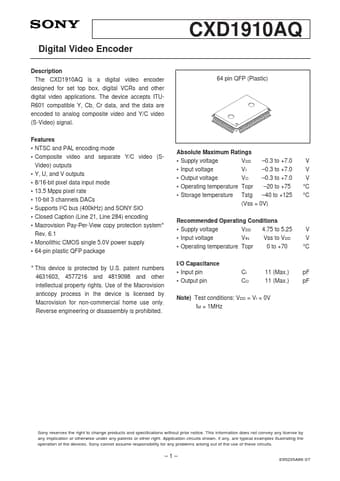

CXD1910AQ Digital Video Encoder by Sony Corporation - Datasheet Preview — Official preview page of the CXD1910AQ Digital Video Encoder datasheet (Sony Corporation).

Datasheet Details

Part number	CXD1910AQ
Manufacturer	Sony Corporation
File Size	215.49 KB
Description	Digital Video Encoder
Datasheet	CXD1910AQ_SonyCorporation.pdf
Additional preview pages of the CXD1910AQ datasheet.

CXD1910AQ Product details

Description

The CXD1910AQ is a digital video encoder designed for set top box, digital VCRs and other digital video applications.

Features

NTSC and PAL encoding mode.
Composite video and separate Y/C video (SVideo) outputs.
Y, U, and V outputs.
8/16-bit pixel data input mode.
13.5 Mpps pixel rate.
10-bit 3 channels DACs.
Supports I2C bus (400kHz) and SONY SIO.
Closed Caption (Line 21, Line 284) encoding.
Macrovision Pay-Per-View copy protection system∗ Rev. 6.1.
Monolithic CMOS single 5.0V power supply.
64-pin plastic QFP package ∗ T.
