CXD1916R Digital Video Encoder

Sony Corporation

CXD1916R Description

CXD1916R Digital Video Encoder .
The CXD1916R is a digital video encoder designed for Video CDs, car navigation and other digital video equipment.

CXD1916R Features

* NTSC, PAL, MPAL and 4.43NTSC encoding modes
* Composite video and separate Y/C video (S-video) signal output
* R, G, B/Y, U, V (BetaCam/SMPTE level) signal output
* 8/16-bit pixel data input modes
* 13.5Mpps pixel rate
* 12.27 and 14.75Mpps square pi

📥 Download Datasheet

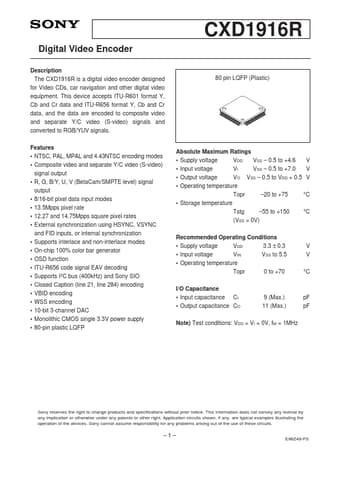

CXD1916R Datasheet Preview — Preview of CXD1916R PDF

Datasheet Details

Part number: CXD1916R
Manufacturer: Sony Corporation
File Size: 354.18 KB
Datasheet: CXD1916R_SonyCorporation.pdf
Description: Digital Video Encoder
