CXD1914Q

Digital Video Encoder

CXD1914Q Features

* NTSC and PAL encoding modes

* Composite video and separate Y/C video (S-video) signal output

* R, G, B/Y, U and V (BetaCam/SMPTE level) signal output

* 8/16-bit pixel data input modes

* 13.5 Mpps pixel rate

* 10-bit 6-channel DAC

* Supports I

CXD1914Q General Description

The CXD1914Q is a digital video encoder designed for DVDs, set top boxes, digital VCRs and other digital video equipment. This device accepts ITU-R601 compatible Y, Cb and Cr data, and the data are encoded to composite video and separate Y/C video (S-video) signals and converted to RGB/YUV signals. .

CXD1914Q Datasheet (407.51 KB)

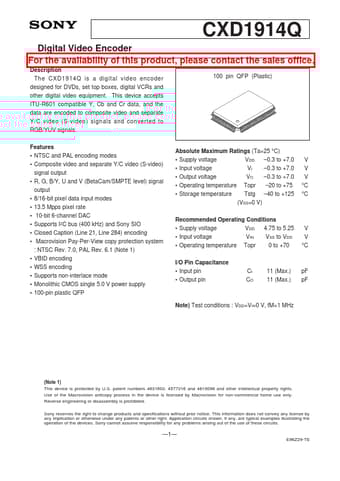

Preview of CXD1914Q PDF

Datasheet Details

Part number:

CXD1914Q

Manufacturer:

Sony Corporation

File Size:

407.51 KB

Description:

Digital video encoder.
