CXD1915R Digital Video Encoder

Sony Corporation

CXD1915R Description

CXD1915R Digital Video Encoder .
The CXD1915R is a digital video encoder designed for DVDs, set top boxes, digital VCRs and other digital video equipment.

CXD1915R Features

* NTSC, PAL, MPAL and 4.43NTSC encoding modes
* Composite video and separate Y/C video (S-video) signal output
* R, G, B/Y, U, V (BetaCam/SMPTE level) signal output
* 8/16-bit pixel data input modes
* 13.5Mpps pixel rate
* 12.27 and 14.75Mpps square pi

📥 Download Datasheet

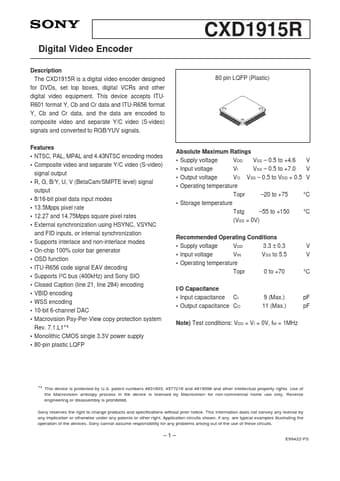

CXD1915R Datasheet Preview — Preview of CXD1915R PDF

Datasheet Details

Part number: CXD1915R
Manufacturer: Sony Corporation
File Size: 354.74 KB
Datasheet: CXD1915R_SonyCorporation.pdf
Description: Digital Video Encoder
