CXD1944R Datasheet, Transceiver/arbiter, Sony Corporation

CXD1944R Features

  • Transceiver/arbiter
  • Conforms to IEEE1394-1995
  • Single 3.3V power supply
  • Supports 100/200Mbps speeds
  • Automatic power down for unused ports
  • Power down mode to

PDF File Details

Part number:

CXD1944R

Manufacturer:

Sony Corporation

File Size:

190.82kb

Download:

📄 Datasheet

Description:

Ieee1394 3-port 200mbps cable transceiver/arbiter. The CXD1944R is a PHY chip which suppor ts 100/200Mbps speeds and performs cable interface and bus arbitration. It conforms to the hi

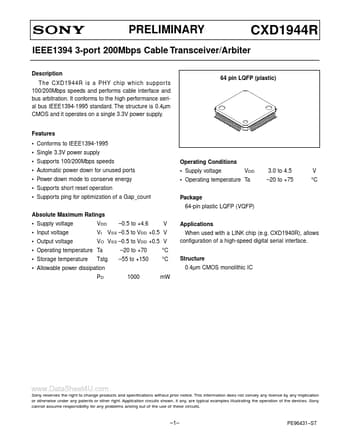

Datasheet Preview: CXD1944R 📥 Download PDF (190.82kb)
Page 2 of CXD1944R Page 3 of CXD1944R

CXD1944R Application

  • Applications When used with a LINK chip (e.g. CXD1940R), allows configuration of a high-speed digital serial interface. Structure 0.4µm CMOS monolit
