CXD1913AQ

Digital Video Encoder

CXD1913AQ Features

* NTSC and PAL encoding mode

* Composite video and separate Y/C video (S-Video) signal outputs

* 8/16-bit pixel data input mode

* 13.5 Mpps pixel rate

* Interlace and non-interlace supported

* On-chip 100% color bar generator

* 10-bit 3 channel

CXD1913AQ General Description

The CXD1913AQ is a digital video encoder designed for video CD, car navigation system and other digital video applications. The device accepts ITU-R601 compatible Y, Cb, Cr data and also accepts ITUR656-format Y, Cb, Cr data, and the data are encoded to composite video and separate Y/C video (S-Vide.

CXD1913AQ Datasheet (405.37 KB)

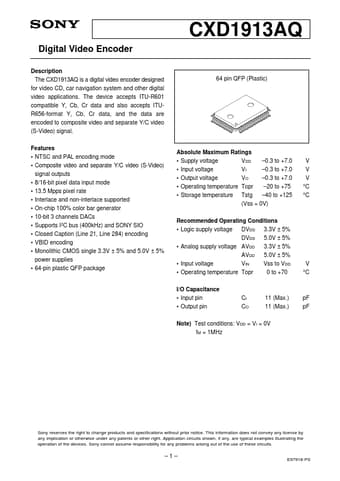

Preview of CXD1913AQ PDF

Datasheet Details

Part number:

CXD1913AQ

Manufacturer:

Sony Corporation

File Size:

405.37 KB

Description:

Digital video encoder.
