CXD2085M ID-1 Detection

Sony Corporation

Description

CXD2085M ID-1 Detection .
The CXD2085M is an IC which has the function of detecting ID-1 (EIAJ, CPX1204) from the video signal. Can detect the ID-1 signal on.

📥 Download Datasheet

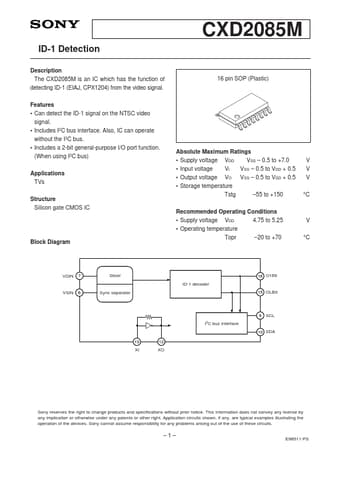

CXD2085M Datasheet Preview — Preview of CXD2085M PDF

Datasheet Specifications

Part number: CXD2085M
Manufacturer: Sony Corporation
File Size: 113.50 KB
Datasheet: CXD2085M_SonyCorporation.pdf
Description: ID-1 Detection

Features

* Can detect the ID-1 signal on the NTSC video signal.
* Includes I2C bus interface. Also, IC can operate without the I2C bus.

Applications

* TVs Structure Silicon gate CMOS IC 16 pin SOP (Plastic) Absolute Maximum Ratings
* Supply voltage VDD VSS
* 0.5 to +7.0
* Input voltage VI VSS
* 0.5 to VDD + 0.5
* Output voltage VO VSS
* 0.5 to VDD + 0.5
* Storage temperature Tstg
* 55
