CXD3607R, Timing Generator for Progressive Scan CCD Image Sensor

CXD3607R Timing Generator for Progressive Scan CCD Image Sensor .
The CXD3607R is a timing generator IC which generates the timing pulses required by Progressive Scan CCD image sensors as well as signal processing ci.

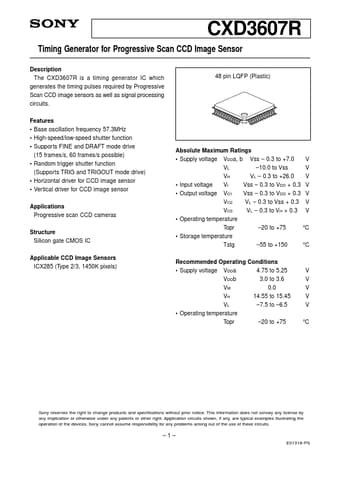

datasheet Preview Page 1 from Datasheet4u.com

CXD3607R_SonyCorporation.pdf

CXD3607R Datasheet Preview — Preview of CXD3607R PDF

Datasheet Details

Part number:

CXD3607R

Manufacturer:

Sony Corporation

File Size:

381.44 KB

Description:

Timing Generator for Progressive Scan CCD Image Sensor

Features

* Base oscillation frequency 57.3MHz
* High-speed/low-speed shutter function
* Supports FINE and DRAFT mode drive (15 frames/s, 60 frames/s possible)
* Random trigger shutter function (Supports TRIG and TRIGOUT mode drive)
* Horizontal driver for CCD image sen

Applications

* Progressive scan CCD cameras Structure Silicon gate CMOS IC Applicable CCD Image Sensors ICX285 (Type 2/3, 1450K pixels) 48 pin LQFP (Plastic) Absolute Maximum Ratings
* Supply voltage VDDa, b Vss
* 0.3 to +7.0 VL
* 10.0 to Vss VH VL
* 0.3 to +26.0
* Input vol
