CXD3619R Timing Generator for Frame Readout CCD Image Sensor

CXD3619R Description

CXD3619R Timing Generator for Frame Readout CCD Image Sensor .
The CXD3619R is a timing generator IC which generates the timing pulses for performing frame readout using the ICX452 CCD image sensor.

CXD3619R Features

* Base oscillation frequency 48.6MHz
* Electronic shutter function
* Supports draft and AF mode

CXD3619R Applications

* Digital still cameras
* Supply voltage VDD VL VH VSS
* 0.3 to +7.0
* 10.0 to VSS VL
* 0.3 to +26.0 V V V Structure Silicon gate CMOS IC
* Input voltage
* Output voltage VI VO1 VO2 VSS
* 0.3 to VDD + 0.3 VSS
* 0.3 to VDD + 0.3 VL

📥 Download Datasheet

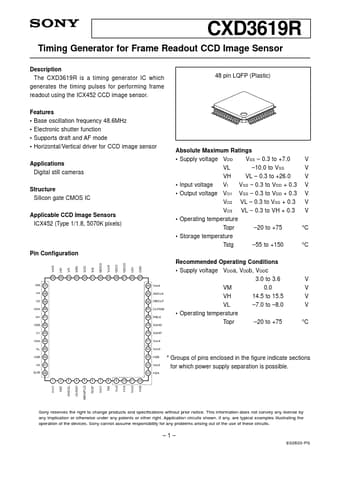

Preview of CXD3619R PDF
datasheet Preview Page 2

Datasheet Details

Part number
CXD3619R
Manufacturer
Sony
File Size
35.54 KB
Datasheet
CXD3619R-Sony.pdf
Description
Timing Generator for Frame Readout CCD Image Sensor
