CXD3615R Timing Generator for Frame Readout CCD Image Sensor

CXD3615R Description

CXD3615R Timing Generator for Frame Readout CCD Image Sensor .
The CXD3615R is a timing generator IC which generates the timing pulses for performing frame readout using the ICX432/434 CCD image sensor.

CXD3615R Features

* Base oscillation frequency 48.6/36.0MHz
* Electronic shutter function
* Supports draft, AF mode

CXD3615R Applications

* Digital still cameras Structure Silicon gate CMOS IC Applicable CCD Image Sensors
* ICX432 (Type 1/2.7, 3240K pixels)
* ICX434 (Type 1/3.2, 2020K pixels) Absolute Maximum Ratings
* Supply voltage VDD VSS
* 0.3 to +7.0 V VL
* 10.0 to VSS V VH VL

📥 Download Datasheet

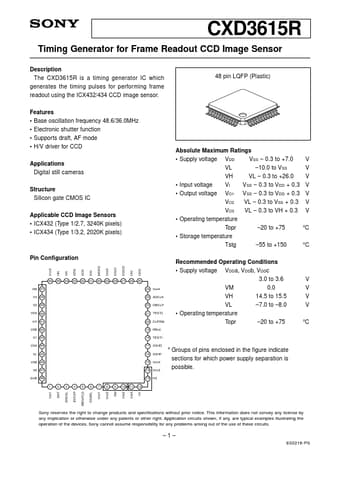

Preview of CXD3615R PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CXD3615R
Manufacturer
Sony
File Size
454.60 KB
Datasheet
CXD3615R-Sony.pdf
Description
Timing Generator for Frame Readout CCD Image Sensor
