CXD3609R

The CXD3609R is Timing Generator for Progressive Scan CCD Image Sensor designed by Sony Corporation.

Product Overview

Sony Corporation

Datasheet Details

Part number	CXD3609R
Manufacturer	Sony Corporation
File Size	895.79 KB
Description	Timing Generator for Progressive Scan CCD Image Sensor
Datasheet	CXD3609R-SonyCorporation.pdf
Additional preview pages of the CXD3609R datasheet.

Product details

Description

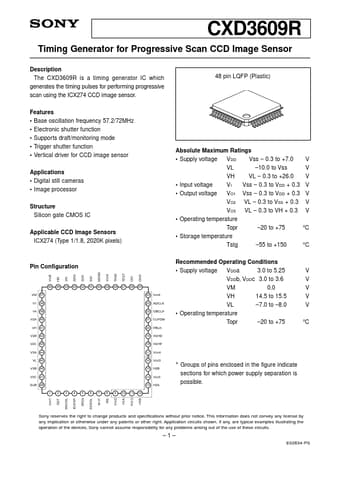

The CXD3609R is a timing generator IC which generates the timing pulses for performing progressive scan using the ICX274 CCD image sensor.48 pin LQFP (Plastic)

Features

Base oscillation frequency 57.2/72MHz.
Electronic shutter function.
Supports draft/monitoring mode.
Trigger shutter function.
Vertical driver for CCD image sensor.
