ICX279AK

Diagonal 4.5mm (Type 1/4) CCD Image Sensor for PAL Color Video Cameras

ICX279AK Features

* a field period readout system and an electronic shutter with variable charge-storage time. The package is a 10mm-square 14-pin DIP (Plastic). EXview HAD CCD TM has different spectral characteristics from the current CCD. Features

* High sensitivity (+5dB compared with the ICX209AK)

ICX279AK General Description

The ICX279AK is an interline CCD solid-state image sensor suitable for PAL color video cameras with a diagonal 4.5mm (Type 1/4) system. Compared with the current product ICX209AK, basic characteristics such as sensitivity, smear and dynamic range are improved drastically through the adoption of EXvi.

ICX279AK Datasheet (204.28 KB)

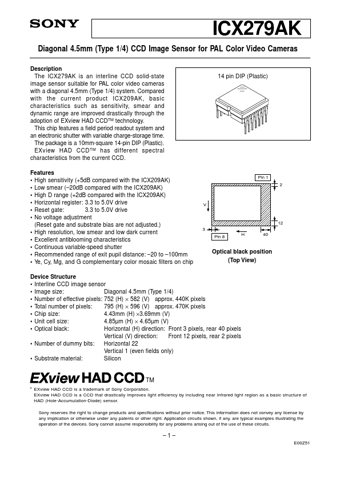

Preview of ICX279AK PDF

Datasheet Details

Part number:

ICX279AK

Manufacturer:

Sony Corporation

File Size:

204.28 KB

Description:

Diagonal 4.5mm (type 1/4) ccd image sensor for pal color video cameras.
