ICX279AL

Diagonal 4.5mm (Type 1/4) CCD Image Sensor for CCIR B/W Video Cameras

ICX279AL Features

* a field period readout system and an electronic shutter with variable charge-storage time. The package is a 10mm-square 14-pin DIP (Plastic). Features

* Sensitivity in near infrared light region (+5dB compared with the ICX209AL, λ = 945nm)

* High sensitivity (+6dB compared with the I

ICX279AL General Description

The ICX279AL is an interline CCD solid-state image sensor suitable for CCIR B/W video cameras with a diagonal 4.5mm (Type 1/4) system. Compared with the current product ICX209AL, basic characteristics such as sensitivity, smear and dynamic range are improved drastically from visible light region to .

ICX279AL Datasheet (191.66 KB)

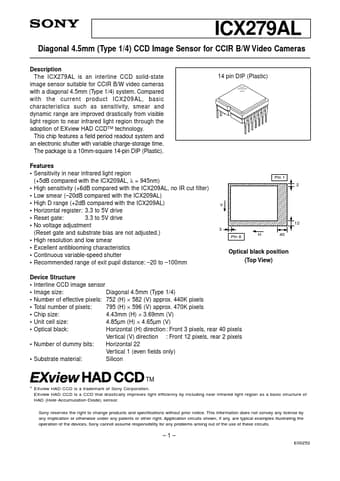

Preview of ICX279AL PDF

Datasheet Details

Part number:

ICX279AL

Manufacturer:

Sony Corporation

File Size:

191.66 KB

Description:

Diagonal 4.5mm (type 1/4) ccd image sensor for ccir b/w video cameras.
