ILX531A - 5150-pixel CCD Linear Sensor

Sony Corporation

📥 Download Datasheet

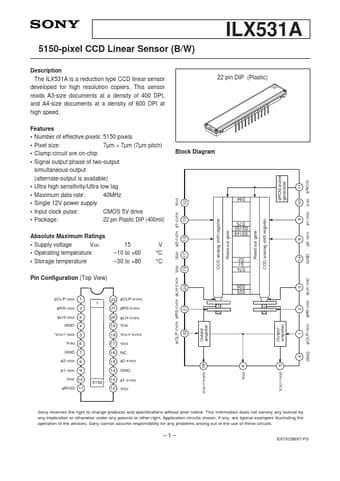

ILX531A Datasheet Preview — Preview of ILX531A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ILX531A
Manufacturer	Sony Corporation
File Size	252.74 KB
Description	5150-pixel CCD Linear Sensor
Datasheet	ILX531A_SonyCorporation.pdf

ILX531A Product details

Description

The ILX531A is a reduction type CCD linear sensor developed for high resolution copiers.

Features

Number of effective pixels: 5150 pixels.
Pixel size: 7µm × 7µm (7µm pitch).
Clamp circuit are on-chip.
Signal output phase of two-output simultaneous-output (alternate-output is available).
Ultra high sensitivity/Ultra low lag.
Maximum data rate: 40MHz.
Single 12V power supply.
Input clock pulse: CMOS 5V drive.
Package: 22 pin Plastic DIP (400mil) Absolute Maximum Ratings.
Supply voltage VDD.
Oper.
