ILX533K, 2700 pixel X 3 line CCD Linear Sensor

ILX533K 2700 pixel × 3 line CCD Linear Sensor (Color) For the availability of this product, please contact the sales office..
The ILX533K is a reduction type CCD linear sensor developed for color image scanner.

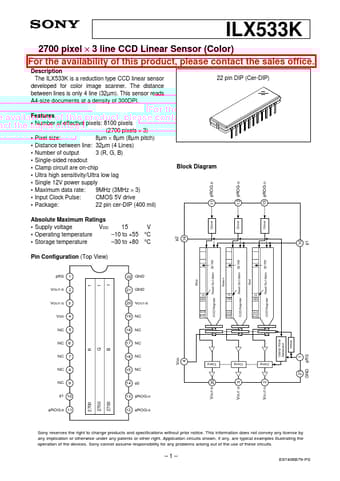

datasheet Preview Page 1 from Datasheet4u.com

ILX533K_SonyCorporation.pdf

ILX533K Datasheet Preview — Preview of ILX533K PDF

Datasheet Details

Part number:

ILX533K

Manufacturer:

Sony Corporation

File Size:

129.60 KB

Description:

2700 pixel X 3 line CCD Linear Sensor

Features

* Number of effective pixels: 8100 pixels (2700 pixels × 3)
* Pixel size: 8µm × 8µm (8µm pitch)
* Distance between line: 32µm (4 Lines)
* Number of output 3 (R, G, B)
* Single-sided readout
* Clamp circuit are on-chip
* Ultra high sensitivity/U
