ILX535K - 5300 pixel X 3 line CCD Linear Sensor

Sony Corporation

📥 Download Datasheet

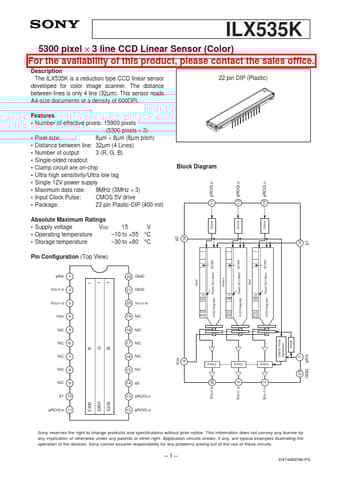

ILX535K Datasheet Preview — Preview of ILX535K PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ILX535K
Manufacturer	Sony Corporation
File Size	132.33 KB
Description	5300 pixel X 3 line CCD Linear Sensor
Datasheet	ILX535K_SonyCorporation.pdf

ILX535K Product details

Description

The ILX535K is a reduction type CCD linear sensor developed for color image scanner.

Features

Number of effective pixels: 15900 pixels (5300 pixels × 3).
Pixel size: 8µm × 8µm (8µm pitch).
Distance between line: 32µm (4 Lines).
Number of output 3 (R, G, B).
Single-sided readout.
Clamp circuit are on-chip.
Ultra high sensitivity/Ultra low lag.
Single 12V power supply.
Maximum data rate: 9MHz (3MHz × 3).
Input Clock Pulse: CMOS 5V drive.
Package: 22 pin Plastic-DIP (400 mil) Absolute Maximum.
